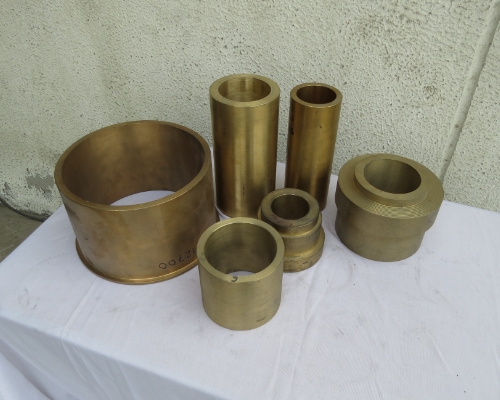

Aluminium bronzes contain varying amounts of aluminium, usually ranging from 5 to 11 percent. Other metals, such as copper, iron, nickel, manganese, and silicon, are added to enhance the mechanical and physical properties.
Aluminium bronze offers some valuable characteristics, including:
APPLICATIONS
| Product Category | Product |
|---|---|
| Automotive | Weld guns |
| Fasteners | Large hold down screws and nuts |
| Industrial | Bearing segments for the steel industry, bearings, gears, machine parts, pawls, pickling hooks, pressure blocks for the steel industry, pump parts, spur gears, valve bodies, valve seats, valves, and worm gears |
| Marine | Covers for marine hardware, ship building |
| Ordnance | Government fittings |
It is a popular choice for many industrial applications, ranging from landing gear components on aircraft through to ship propellers and even jewellery.
Yes I'm Interested| GRADE | Cu | Sn | Pb | Zn | Fe | Ni | P | Al | Mn | Si | Imp. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AB-1 or C95400 | Rem. | 0.10 | 0.03 | 0.5 | 1.5-3.5 | 1 | - | 8.5-10.5 | 1 | 0.25 | 0.3 |
| AB-2 or C95500 | Rem. | 0.1 | 0.03 | 0.5 | 4-5.5 | 4-5.5 | - | 8.8-10 | 1.5 | 0.1 | 0.3 |
| C95300 | 86 min | - | - | - | 0.8-15 | - | - | 9-11 | - | - | - |
| IS:3091-1963 | Rem. | - | - | - | 4-5 | - | - | 9-11 | 0.1-0.5 | - | - |
| IS:8631-1977 Grade 1 | Rem. | 0.1 | 0.05 | 0.5 | 4-5.5 | 4-5.5 | - | 8.8-10 | 1 | 0.1 | - |

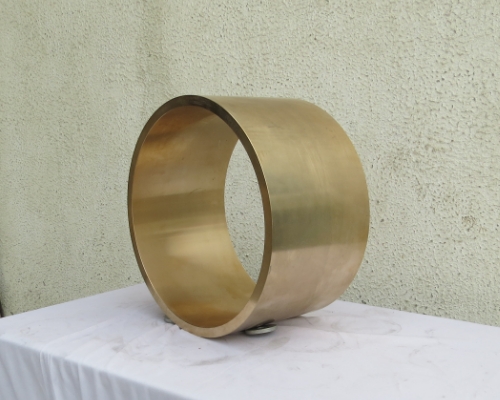

Phosphor bronze castings are widely demanded for features like high strength, low coefficient of friction and fine grain. The range of phosphor bronze castings is appreciated in the market for its features of perfect finish, modular design, and smooth edges. Clients can avail the phosphor bronze castings in customization with the details specified by them. Phosphor bronzes PB1, PB2, PB3 & PB4 are predominantly used for their wear resistance and bearing properties. Phosphor bronzes PB1 and PB2 are preferred in the form of heavy-duty gears, worm wheels, and bearings for the more critical applications where high working loads, high speeds, impact loading and pounding coupled with adequate lubrication and good alignment are found. Phosphor Bronze PB4 is adequate for the less critical applications. Phosphor bronze castings are extensively used in diversified industrial sectors.
Highlights
| GRADE | Cu | Sn | Pb | Zn | Fe | Ni | P | Al | Mn | Si | Imp. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PB-1 | Rem. | 10 min | 0.25 | 0.05 | 0.1 | 0.1 | 0.5 min | 0.01 | - | 0.02 | 0.6 |
| PB-2 | Rem. | 11-13 | 0.5 | 0.3 | 0.15 | 0.5 | 0.15 min | 0.01 | - | 0.02 | 0.2 |
| PB-4 | Rem. | 9-5 min | 0.75 | 0.5 | - | 0.5 | 0.4 min | - | - | - | 0.5 |
| Tin Bronze IS:1458-1965 Ph. Bz. Class-1 | Rem. | 6-8 | 0.5 | 0.5 | 0.3 | - | 0.4-0.6 | 0.01 | - | - | 0.6 |

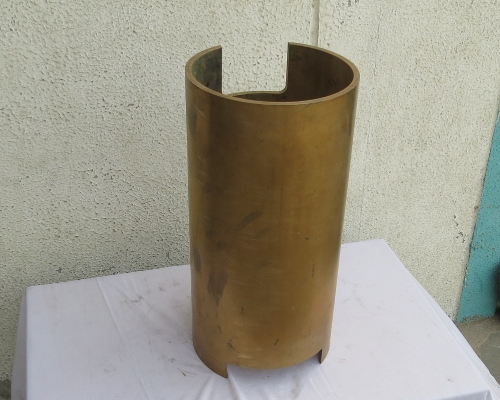

We have been committed to manufacturing and supplying quality-assured copper EC grade casting.
With required parameters like conductivity and purity and impurity-free heavy and small casting.
The major uses of pure, unalloyed copper are based on its high electrical and thermal conductivity as well as its good corrosion resistance. Almost all alloying elements are detrimental to the electrical conductivity of copper, making the purity of the metal an important issue. Commercially pure copper is represented by UNS numbers C10100 to C13000. The various grades of unalloyed copper differ in the amount of impurities and therefore do behave differently. Oxygen-free copper is used in applications requiring high conductivity and exceptional ductility.
Yes I'm Intrested

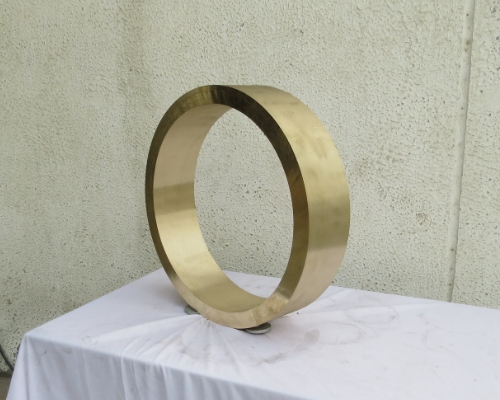

Brass centrifugal casting parts, sleeve, bush, and bearing bushing, suited for high-load, low-speed applications. The product’s copper sleeve could be in different specifications and sizes. We could make any like this item according to your requirement; it will be used in a plastic extruder machine. The feature of it will be a smooth surface, free from pinhole porosity, hard-wearing, and long useful time. Material: copper and another nonferrous alloy. Sizes range (mm): according to your demand. Tolerance: 0.01-1mm.
Yes I'm Intrested| BRASS GRADE | Cu | Sn | Pb | Zn | Fe | Ni | P | Al | Mn | Si | Sb | Imp |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brass IS:8631-1977 Grade-2 | 55 | 1 | 0.5 | Rem. | 0.7-2 | 1 | - | 0.5-2.5 | 3 | 0.1 | - | - |
| IS:292-1983 LCB-1 | 70-77 | 1.3 | 2-5 | Rem. | 0.5 | - | - | 0.01 | - | - | - | - |
| IS:292-1983 LCB-2 | 63-67 | 1.5 | 1-3 | Rem. | 0.5 | - | - | 0.01 | - | -- | - | - |
| High Tensile Brass IS:304-1981 HTB-1 | 55 min | 1 | 0.2 | Rem. | 0.7-2 | - | - | 0.5-2.5 | 3 | 0.1 | - | 0.2 |
| High Tensile Brass IS:304-1981 HTB-2 | 55 min | 0.2 | 0.2 | Rem. | 1.5-3.25 | - | - | 3-6 | 4 | 0.1 | - | 0.2 |
| Silicon Brass(Grade-1) | 79 min | - | 0.5 | 12.5-16 | 0.3 | - | - | 0.5 | - | 3.2-5 | - | 0.5 |
| Silicon Brass(Grade-2) | 88 min | - | 0.5 | 4.5-7 | 0.3 | - | - | - | - | 3.7-5.5 | - | 0.5 |
| Silicon Brass(Grade-3) | 80-83 | - | 0.4 | Rem. | 0.3 | - | - | 0.05 | - | 4.1-4.7 | - | 0.5 |

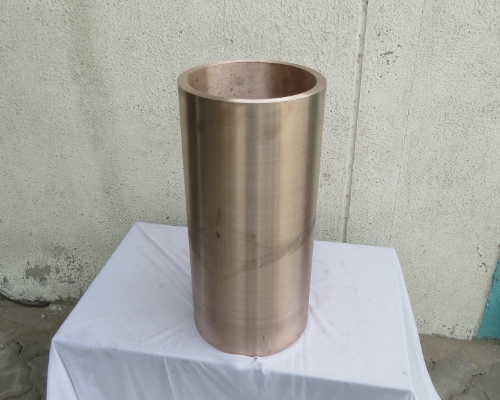

We are among the prominent gun metal casting manufacturers and suppliers all over India. Gun metal castings brought forth by the company are available in various hardnesses, tensile strengths, and dimensions. Gun metal castings are manufactured using high-grade raw materials in compliance with international quality standards. Gun metal castings of our company are widely accepted in different industries for their quality. Gun metal castings are highly appreciated by clients for their tolerance capacity, dimensional accuracy, and durability. Typical uses of gun metal casting are pressure-tight bearings, bushes, pumps and pump fittings, valves, valve bodies, and valve guides under corrosive marine conditions; gear and worm wheels; bearings for aero engines, diesel engines, electrical generators, and rolling mills, etc.
Attributes
| GRADE | Cu | Sn | Pb | Zn | Fe | Ni | P | Al | Mn | Si | Imp. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LTB-1 | Rem. | 6-8 | 2.5-3.5 | 1.5-3 | 0.3 | 2 | - | 0.01 | - | 0.01 | 0.7 |
| LTB-2 | Rem. | 4-6 | 4-6 | 4-6 | 0.35 | 2 | - | 0.01 | - | 0.02 | 0.8 |
| LTB-3 | Rem. | 6-8 | 9-11 | 0.75 | 0.35 | 2 | - | 0.01 | - | 0.02 | 0.8 |
| LTB-4 | Rem. | 6-8 | 14-16 | 0.75 | 0.35 | 2 | - | - | - | 0.02 | 0.8 |
| LTB-5 | Rem. | 9-11 | 8.5-11 | 1 | 0.35 | 2 | - | 0.01 | - | 0.02 | 0.8 |
| LTB-6 | Rem. | 4-6 | 18-23 | 1 | 0.35 | 2 | - | - | - | 0.01 | 0.8 |

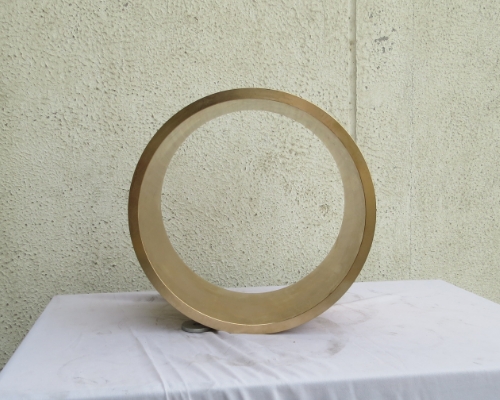

We offer a various range of aluminium castings of up to 1000 mm dia for various industries like oil and gas industries, heavy machine manufacturing industries, and special rings for lightweight application
Yes I'm Intrested

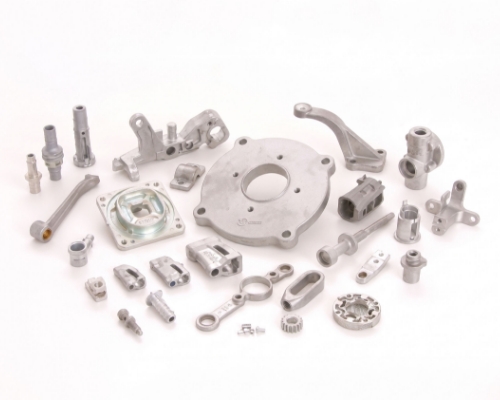

We offer zinc die casting in zinc alloy.
Zinc being the easiest alloy to cast, offers high ductility and good impact strength. It can also be easily plated. Thus, making zinc die casting economical for small parts like building hardware, buttons and luggage fittings, electrical switchgear parts and decorative artwork.
Centrifugal casting offers higher quality in the field of material strengths, casting accuracy and better reproduction of details. It gives high quality parts from common commercial zinc alloys. Centrifugal casting offers an alternative solution to the die casting technology.
Yes I'm Intrested
